Real Time Location Tagging Systems for use in Healthcare Applications

Real-Time Location Tagging allows either staff or valuable equipment to be tagged and tracked. This allows the location of key personnel and equipment within the facility to be quickly established at all times.

Available solutions include:

Universal Tags
Asset Tags
Long Range IR Sensors
Short Range IR Sensors
RF Sensors

A child with his mother at the doctor's office getting a check-up

Care Communications for the 21st Century

ZETTLER systems help healthcare managers supply safer environments for people. Our mission is to help hospitals save time and money by driving efficiencies with systems on a single platform.

Download the Brochure

Products and Solutions

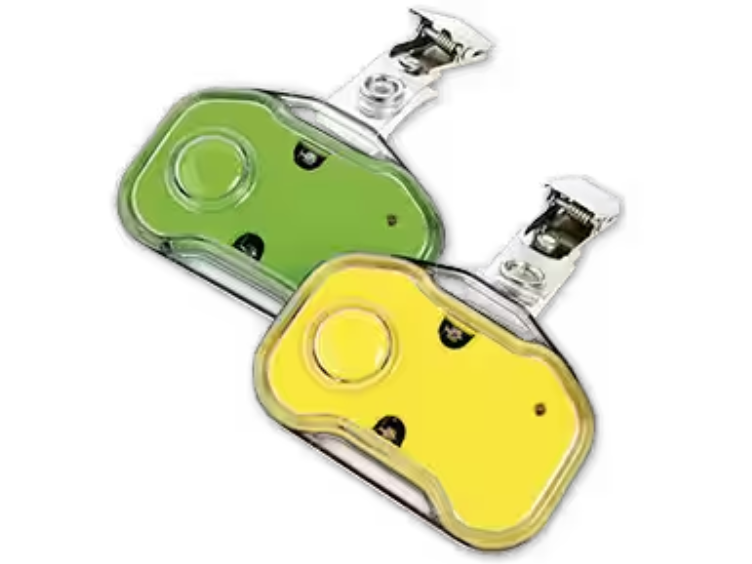

VL Universal Tags

Tag for people and assets so that they can be located by infrared sensors and signals can be detected by associated RF sensors.

Green or yellow units available
Integrated call button
Unique identification number
Integrated motion sensor for longer battery life
Battery life up to 18 months (Depending on use)
Battery low warning message

For more information and to discuss your requirements, please contact us using the form at the bottom of this page.

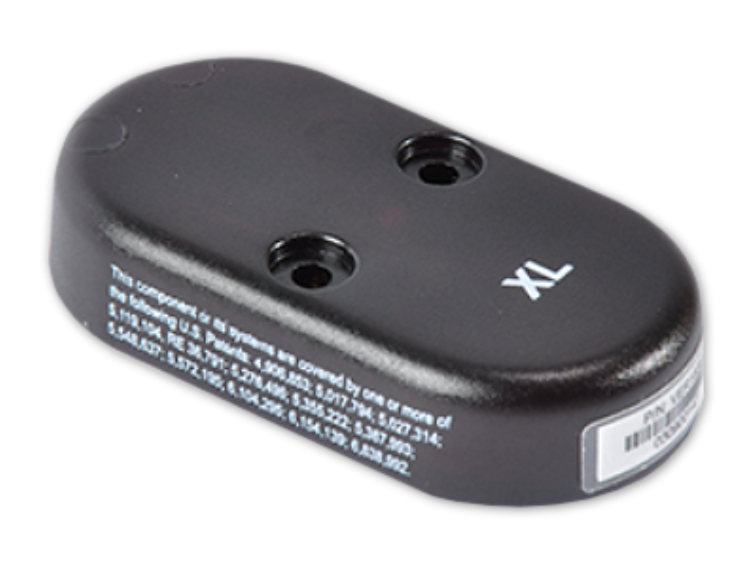

VL Asset Tags

Tag for assets so that they can be located by infrared sensors and signals can be detected by associated RF sensors.

Sabotage contact, triggered if the asset tag is removed
Unique identification number
Integrated motion sensor for longer battery life
Battery life up to 18 months (Depending on use)
Battery low warning message

For more information and to discuss your requirements, please contact us using the form at the bottom of this page.

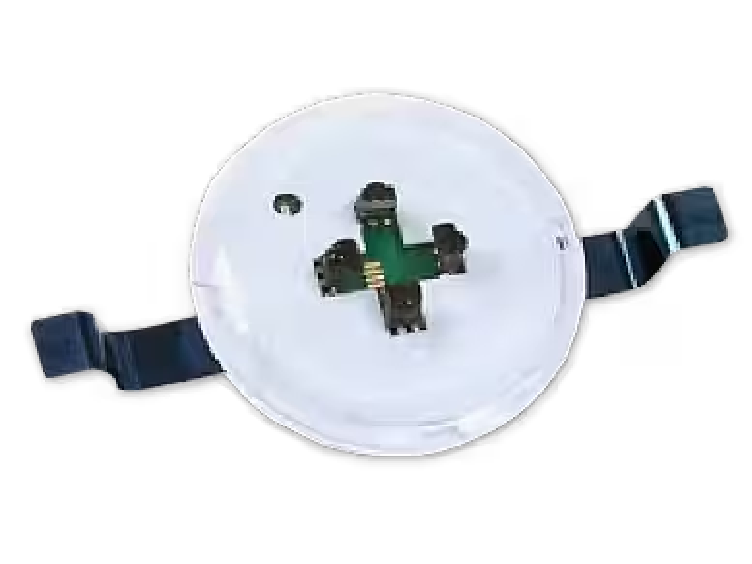

VL Long Range Infrared Sensors

Long range addressable sensor for the localisation of infrared transmitters carried by people or attached to assets. If any are detected, the infrared sensor forwards the information to the room electronics, which then triggers a call or sets/cancels a presence.

Connection with 4-wire line to room electronics
Easy installation in ceiling tiles or on the surface with VL Surface mounting box
Monitored area can be restricted with VL Focus ring kit
Max. distance of the transmitters (22m depending on installation location)

For more information and to discuss your requirements, please contact us using the form at the bottom of this page.

VL Short Range Infrared Sensors

Short range addressable sensor for the localisation of infrared transmitters carried by people or attached to assets. If any are detected, the infrared sensor forwards the information to the room electronics, which then triggers a call or sets/cancels a presence.

Connection with 4-wire line to room electronics
Easy installation in ceiling tiles or on the surface with VL Surface mounting box
Monitored area can be restricted with VL Focus ring kit
Max. distance of the transmitters (12m depending on installation location)

For more information and to discuss your requirements, please contact us using the form at the bottom of this page.

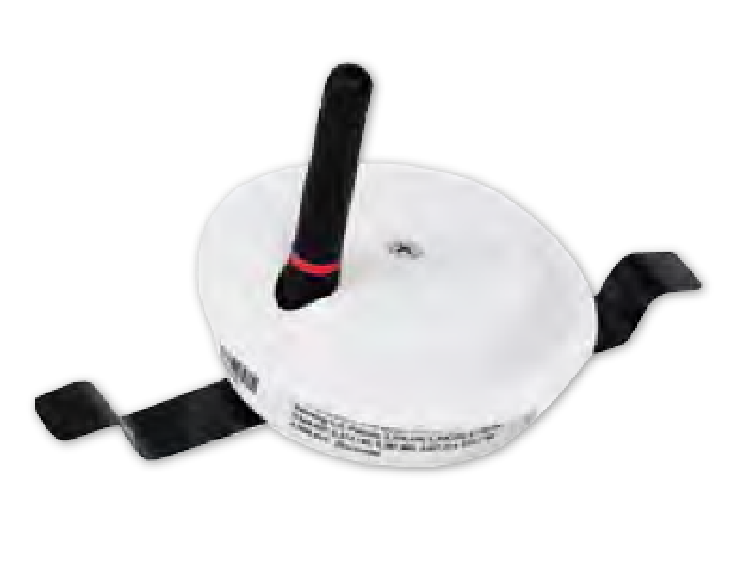

VL RF Sensors

Addressable RF sensor for detecting signals of radio transmitters carried by people or attached to assets. If any are detected, the RF sensor forwards the information to the room electronics, which then triggers a call or sets/cancels a presence.

Connection with 4-wire line to room electronics
Easy installation in ceiling tiles or on the surface with VL Surface mounting box
Max. distance of the transmitters (15-25m depending on installation location)

For more information and to discuss your requirements, please contact us using the form at the bottom of this page.
