FT04A Product code: EIO-FT-04A-5

FT04B Product code: EIO-FT-04B-5

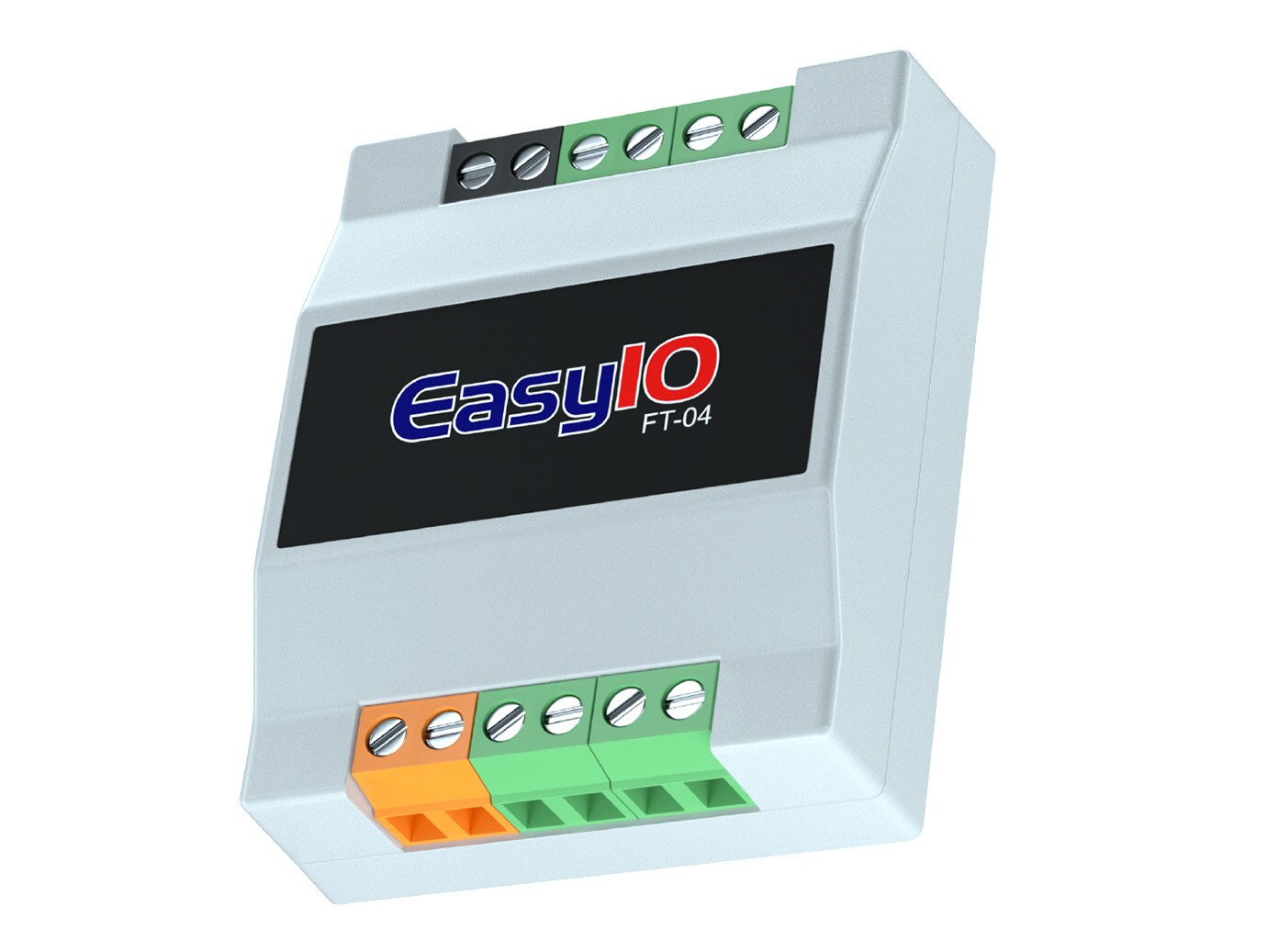

The FT-04 product range is a versatile, small form factor controller. WiFi only, it can be used to extend control to hard to reach equipment, utilized in small spaces, localized lighting control, remote IO, temperature control and monitoring, on/off control of equipment, residential applications or just about anything that needs connectivity.

  • Provides standalone control
  • Built-in web server and HTML5 compatible
  • Built-in dashboard

Product Overview

The FT-04 provides standalone control. It supports live programming and commissioning through onboard dashboards. The HTML5 web server allows you to access the controller by mobile devices while troubleshooting onsite or via secure, remote connectivity. FT-04 also supports BACnet IP, Sox, TCom and P2P. All models have 2 universal inputs. FT-04A has 2 analog outputs and FT-04B has 1 analog output and 1 relay output.

Features and Characteristics

  • BACnet, TCom and Sox protocol
  • 240 MHz ESP32 main processor
  • BACnet IP Server over WiFi
  • 4MB RAM
  • EasyIO Peer to Peer Protocol, compatible with FS, FG+, FW and FT Series
  • 16MB Flash Memory
  • Built-in web server and HTML5 compatible
  • 24V AC/DC Power
  • RESTful API and other web services
  • 2x UI
  • Built-in dashboard
  • FT-04A = 2x AO
  • WiFi Access Point with DHCP Server
  • FT-04B = 1x DO, 1x AO
  • Station/Client for production mode
